Bevel Helical Gearboxes

Bevel Helical Gearboxes

Bevel Helical Gearboxes are advanced power transmission systems that combine the advantages of helical gears and bevel gears to transmit power efficiently between non-parallel shafts, typically at a right angle. Known for their high torque capacity, smooth operation, and robust design, bevel helical gearboxes are ideal for heavy-duty industrial applications requiring compact and efficient power transfer.

What Is a Bevel Helical Gearbox?

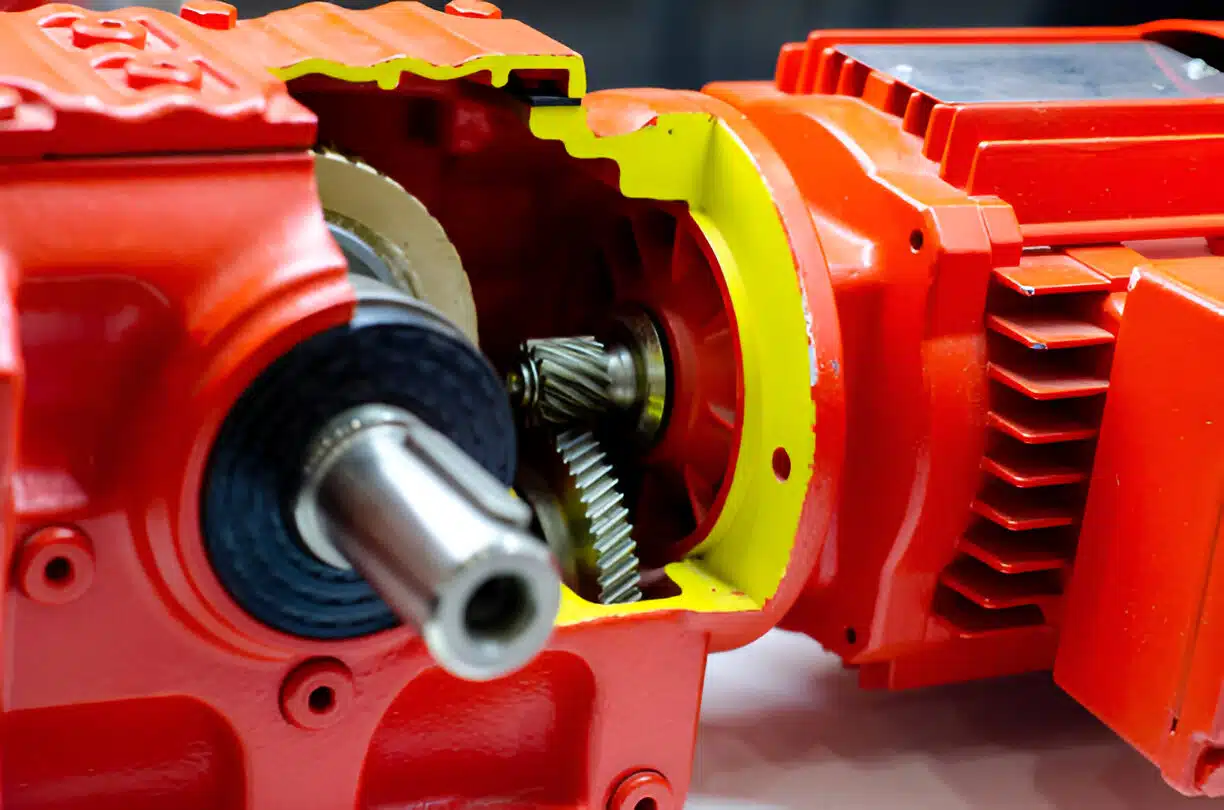

A bevel helical gearbox consists of a bevel gear set (usually spiral bevel) and a helical gear set arranged in a configuration that changes the direction of drive, usually by 90 degrees. The helical gears provide smooth and quiet operation, while the bevel gears allow for the redirection of torque between intersecting shafts. This combination results in a gearbox that is powerful, reliable, and capable of transmitting high loads in a compact space—making it a preferred choice for demanding industrial applications.
